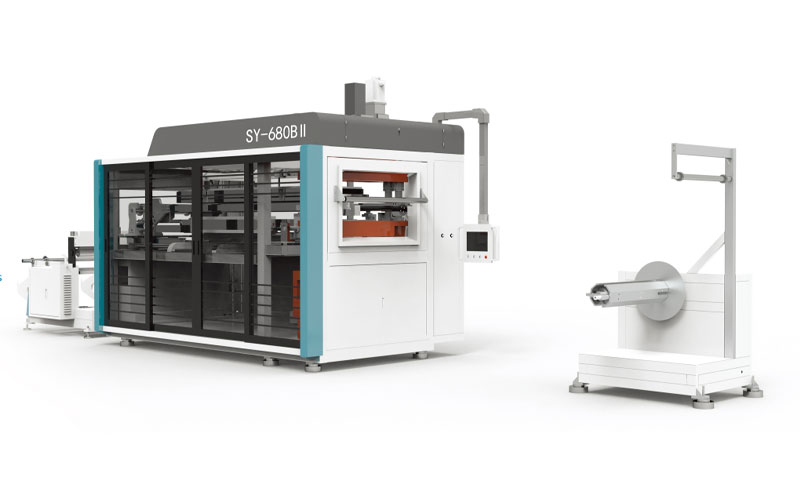

SY-680B
Max.Forming Area: 650/320
Max.Forming Height And Depth: ≤135 mm by robot, ≤170mm by blowing
Max.sheet width:690
The SAYEAH Plastic Cup Making Machine efficiently produces a wide variety of plastic cups and bowls in any size or shape. This process heats and softens the plastic sheet, then uses pressure molding to accurately replicate the shape of the mold, ensuring high consistency and precision in the final product.
Flexible material processing: Suitable for plastic sheet thickness from 0.2 mm to 2 mm, supporting different cup designs and production requirements.
Easy operation: Fully automated with PLC control and a user-friendly touch screen interface for stable daily production.
Precise forming performance: pressure forming helps achieve accurate shape control and consistent product quality.
Reliable machine structure: The integrated hydraulic system helps simplify maintenance and supports long-term operation.
Bottom line: For deep-draw water cups, yoghurt cups, coffee cups and matching lids, a dedicated plastic cup making machine with rim curling delivers better output than a general thermoforming line — flat food trays and clamshells need a multi-station thermoforming machine instead.
Max.Forming Area: 650/320
Max.Forming Height And Depth: ≤135 mm by robot, ≤170mm by blowing
Max.sheet width:690

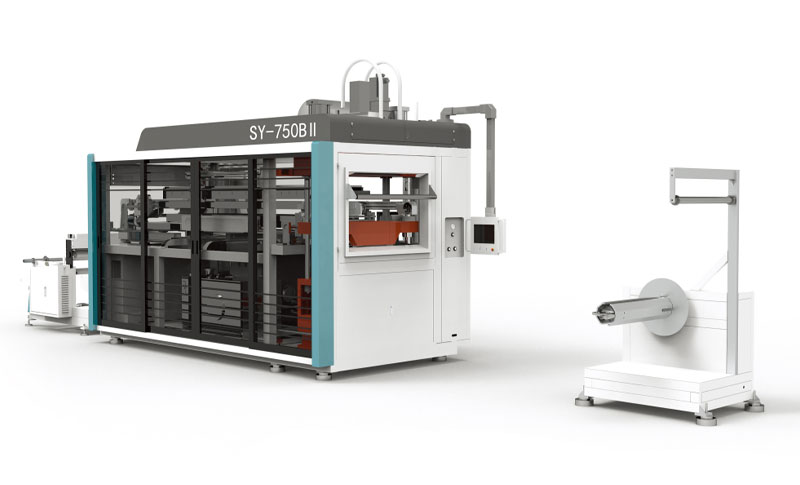

Max.Forming Area: 750/450
Max.Forming Height And Depth: ≤140 mm by robot, ≤240mm by blowing
Max.sheet width: 790
Max.Forming Area: 850/550
Max.Forming Height And Depth: ≤140 mm by robot, ≤180mm by blowing
Max.sheet width: 890
Max. Forming Area: 900/650
Max. Forming Depth: ≤150 mm (Robot) / ≤180 mm (Blowing)
Max. Sheet Width: 930 mm
Quick reference table for machine specifications and application types
Cup and packaging factory buyers get better quotes and faster project timelines when these three areas are defined upfront.
Match cups, bowls or matching lids to the right SY series cup line — browse our application center for cup production recommendations by product type.
PP, PET and PLA sheet thickness, forming depth and daily cup output determine which SY model fits — pair with a plastic sheet extruder for in-house sheet supply on a complete cup production line.
Mold change time, scrap rate and after-sales support directly affect payback. As a long-term thermoforming machine manufacturer, SAYEAH supports installation, training and global spare parts.
Select your product type to find the optimal machinery series for your production goals.
Specifically engineered for deep-draw containers like water cups, yoghurt cups, milk tea cups, and matching precision lids.
Designed for large-area and multi-cavity products such as fresh meat trays, fruit clamshells, egg cartons, and nursery trays.
From raw material to finished product with near-zero waste.
Raw PP/PET pellets are melted and co-extruded into a continuous flat sheet via a plastic sheet extruder, with precise thickness control (0.15–2mm).
Intelligent multi-station forming at up to 65 cycles/min, ensuring ±0.1mm cutting accuracy and uniform wall thickness.
Intelligent stacking robots automatically count and stack formed products, seamlessly connecting to end-of-line packing systems.
Skeleton waste is immediately crushed at line speed and fed back directly into the extruder for closed-loop recycling.
The dual-sided IR heating technology ensures deep heat penetration into the material core. This is critical for processing thick sheets or maintaining high-speed production, effectively preventing surface scorching while ensuring perfect forming clarity.
The main cabinet houses the PLC logic and servo drive systems. Specifically engineered for rigorous industrial environments, it ensures that motion control and logic execution remain absolute stable during 24/7 continuous operation.
The Human-Machine Interface (HMI) simplifies complex thermoforming variables into an easy-to-read dashboard. Operators can instantly diagnose system status and adjust cycle times, significantly reducing setup costs and production downtime.
The OCP serves as a secondary control point, providing tactile feedback for critical machine movements. This ensures maximum safety and control precision during mold installation, material threading, and initial machine commissioning.
Designed for maximum uptime and ease of use.
Chain frame exits safely, allowing fast, accurate mold changes to significantly reduce machine downtime.
PLC intelligently controls operations with formula storage, allowing instant remote judgment of obstacle messages.
Standardized parts inventory ensuring your production lines keep running smoothly worldwide. Contact us for support.
Sayeah remains committed to providing reliable, safe thermoforming equipment that meets global quality benchmarks.
In-depth articles to help you compare cup line options, estimate ROI and prepare a stronger RFQ.
Tell us your cup type, sheet material and target daily output — our engineers will recommend the right SY series and provide a tailored quotation.
Plastic Cup Making Machine
Our machines are compatible with a wide range of plastic sheets, including PP, PS, PET, PVC, HIPS, and OPS. For sustainable packaging needs, our systems are optimized for biodegradable PLA and heat-resistant CPET, maintaining a fast and accurate temperature control system with an error of only ±1 degree. See our guide on PP vs PET vs PLA in thermoforming applications.
Sayeah high-speed plastic cup making machines can reach dry cycle speeds of up to 65 cycles per minute. For multi-station intelligence series, dry cycle speeds typically range between 35 and 55 cycles per minute depending on the specific configuration.
While our standard multi-station machines handle depths up to 150mm , our specialized SY-750B series can achieve a maximum forming depth of up to 240mm for blowing-style cups or 150mm with a robotic interface. This is ideal for producing large drinking cups, yoghurt cups, and plastic flower pots.
Yes, we provide fully automated "One-Stop" solutions including smart end-of-line packaging systems that eliminate manual transfer processes. Our systems integrate stacking, counting, and packing to pioneer the next phase of smart manufacturing in unmanned factories.
Our intelligent machines feature remote maintenance capabilities for instant judgment of obstacle messages and rapid correction. Furthermore, the integrated electric cabinet design and quick front mold change systems reduce machine assembly time and simplify daily operation and maintenance.
Share cup drawings or samples, target daily output, sheet material and thickness, forming depth, and whether you need auxiliary equipment such as stackers or offset printers. See our guide on thermoforming machine cost procurement checklist.
