SY-680B
Automatic Plastic Cup Making Machine
This series mainly used for making different kinds of plastic cups, such as water drinking cups, jely cups, yoghurt cups, coffee cups. lt can also make flower pots, disposable bowls, lids, plates, trays and etc.
Max.Forming Area: 650/320
Max.Forming Height And Depth: ≤135 mm by robot, ≤170mm by blowing
Max.sheet width:690
CE Certified
60+ Countries
1-Year Warranty
24h Response
Product Description
Major Construction Features
- The operation of the machine is controlled by PLC and touch screen
- The mold Guide plate adopts four Guide posts to ensure the mold clamping accuracy
- The chain frame adopts fast cooling and wear-resistant design
- The chain frame exits the safe mold change system, which can greatly reduce the difficulty of mold change
- Heating in 5-6 sections of the heating furnace to ensure that the materials are fully heated in the heating furnace
- The cup blowing system can adjust the cup blowing angle and air volume
- lntegrated design of hydraulic system to facilitate overhaul and maintenance
- Servo stretching system, quality assurance, durable and not easy to break
- Simple operation, reliable performance, low noise and high quality
- Intearated Design electric cabinet to simplify machine assembly and wiring installation process
Main Technical Parameters
| Model | SY-680B Ⅰ | SY-680B Ⅱ | SY-680B Ⅲ |
| Max.Forming Area | 650×320mm | 650×320mm | 650×320mm |
| Max.Dry Cycle Speed | 35Cycles/min | 35Cycles/min | 40Cycles/min |
| Running Pattern | Hydraulic | Hydraulic | Servomotor |
| Feeding Patern | Motor With Encode | Servomotor | Servomotor |
| Stretching Pattern | Air Cylinder | Servomotor | Servomotor |
| Sheet Specification | THK:0.2-2mm, W:Max.690mm | ||
| Max.Forming Depth,Sample Height | ≦135mm with robot, ≦175mm by blowing |
≦135mm with robot, ≦180mm by blowing |
|
| Max.Sheet Roll Dia | 1100mm, 1T | ||
| Power Consumption | 40Kw/h | 45Kw/h | 40Kw/h |
| Overall Power | 131KW | 137KW | 137KW |
| Dimension (L×W×H) | L3650*W1590*H2500mm | L3650*W1590*H2500mm | L3650*W1590*H2500mm |
| Weight | 4.4T | 4.5T | 4.5T |
Automatic Plastic Cup Making Machine Videos
PRODUCTION PROCESS
Zhejiang Sayeah Machinery Co., Ltd
Unwinder
The unwinder was lifted by the electricity, and the sheet roll max load weight is 1T. It can put two rolls one time for easy replacement.
Touch Screen
Easy to operate, all-electric adjustments can be done on the touch screen.
Chain
Aluminum alloy can make sure the cooling effect better. The width of the chain, forward or backward was adjusted by the motor.
Heater
It can adjust the temperature quickly and control the temperature precisely, which can save energy.

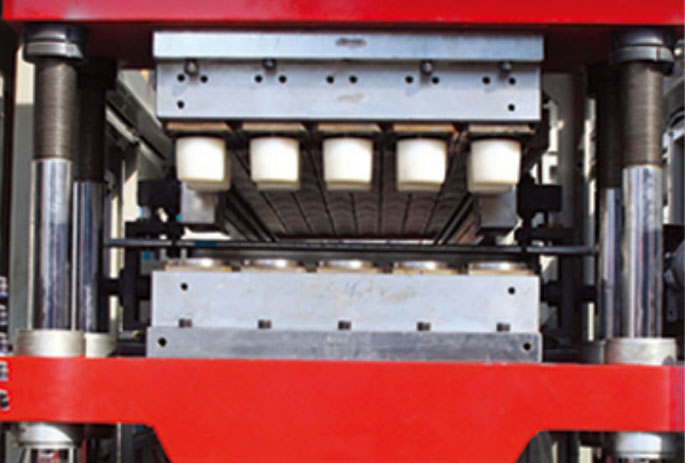

Guides
It can option for hydraulic or servo motor-driven mode and has strong power. Four-pillar can sure the guides run smoothly. And the servo stretch will make the product more uniform and the mold forming more perfect. The automatic lubrication can prolong the life of the machine.
Electrical
The layout of the electrical cabinet is reasonable, and it is easy to maintain. It can be upgraded and maintained remotely.
SAMPLE DISPLAY
Zhejiang Sayeah Machinery Co., Ltd
Cup Lids
Colored Plastic Cups
Heart-Shaped Cups
Portion Cups
Dome Lid Cups
Dessert Cups
Plastic Bowls
Clear Plastic Cups
Printed Containers
Plastic Plates
Rice Ball Molds
Ribbed Bowls
Plant Pots
Cake Containers
Clamshell Containers
Food Trays with Lids
