FSCT600/400
Plastic Thermoforming Machine
The electric lifting feature of the unwinding station, coupled with the double roll holder, enables effortless loading of rolls weighing up to 1 ton by a single operator, enhancing productivity and convenience.
Max.Forming Area: 600/400
Max.Forming Height And Depth: 80/40
Max.sheet width: 640
CE Certified
60+ Countries
1-Year Warranty
24h Response
Product Description
Major Construction Features
- Fast and accurate temperature control system (error + 1 degree), which can reach the set temperature in ten minutes
- Various materials can be used, which is suitable for all kinds of small and medium-sized batch orders
- Quick front mold change, safe and simple die change, reducing machine downtime
- Materials with strong shrinkage can adopt the single station die forming and punching function to 100% ensure the die edge cutting accuracy
- High cost performance, low failure rate, abnormal alarm response mode, reducing the time cost of troubleshooting
- Remote maintenance, instant judgment of obstacle messages, rapid correction and repair of problems
- lntegrated design of electric cabinet to simplify machine assembly and wiring installation process
Main Technical Parameters
| Mode | FSCT600/400-2 | FSCT600/400-3 | FSCT600/400-4 |
| Qty of Stations | 2 | 3 | 4 |
| Max.Forming Area | 600x400mm | ||
| Max.Forming Depth | 80/40mm | ||
| Max.Sheet Width | 640mm | ||
| Max.Sheet Roll Dia. | 1100mm,1T | ||
| Sheet Thickness Range | 0.15-2mm | ||
| Max.Dry Cycle Speed | 35 Cycles/min | ||
| Overall Power | 85KW | 90KW | 95KW |
| Dimension (L×W×H) | 7600×2100×3200mm | 8200×2100×3200mm | 9000×2100×3200mm |
| Machine Weight | 4T | 5.5T | 7T |
Notes: lf any change of data, we will not notify further
Plastic Thermoforming Machine Videos

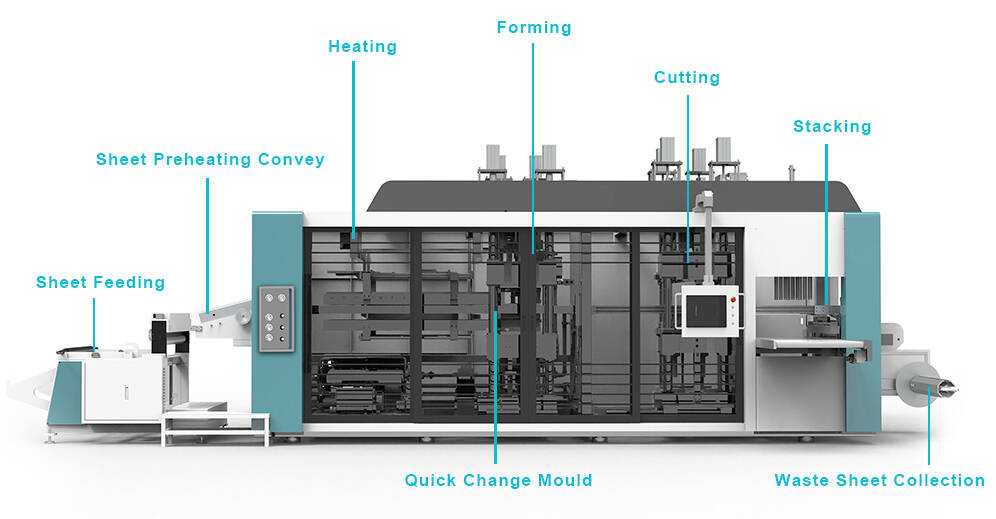

PRODUCTION PROCESS
Zhejiang Sayeah Machinery Co., Ltd
Sheet Unwinding
The motor-driven unwinding system feeds the sheet smoothly, accommodating rolls up to 1 m in diameter. A built-in dust plate ensures the sheet stays clean before entering the machine.

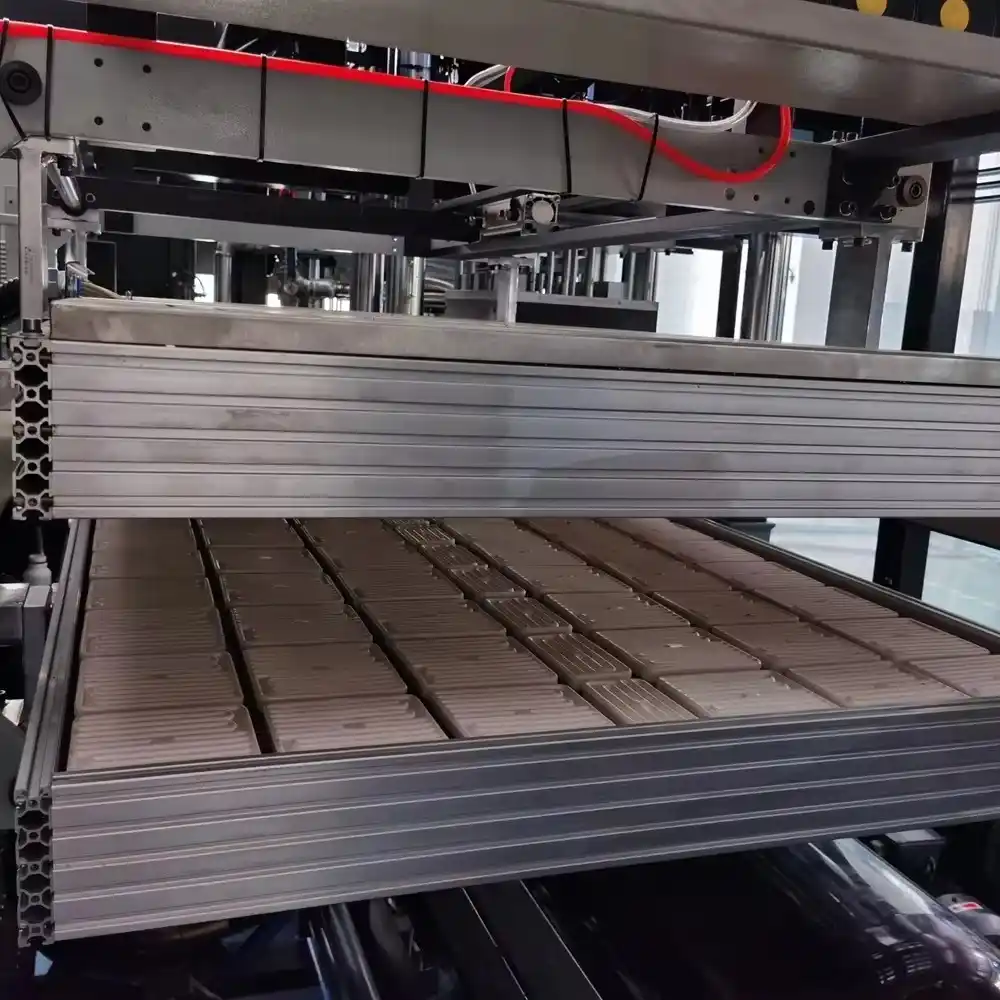

Heating
Temperature is controlled precisely with a difference within ±1°C. Utilizing a fully enclosed oven and durable ceramic heaters, the temperature control system delivers superior energy savings and efficiency.

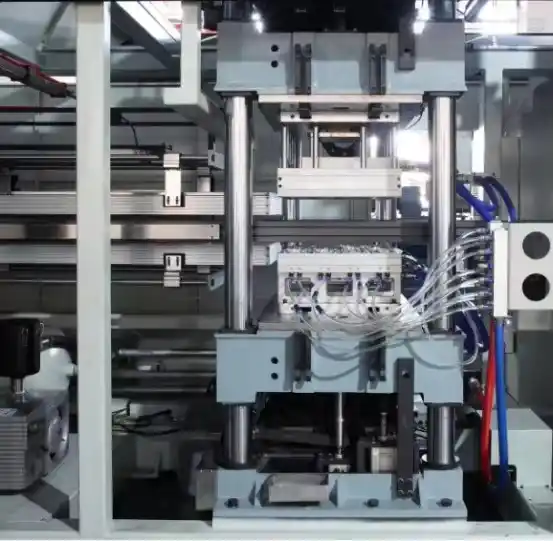

Forming
The high-performance servo motor drives the mold to close, ensuring precise, consistent, and stable thermoforming of the final products.

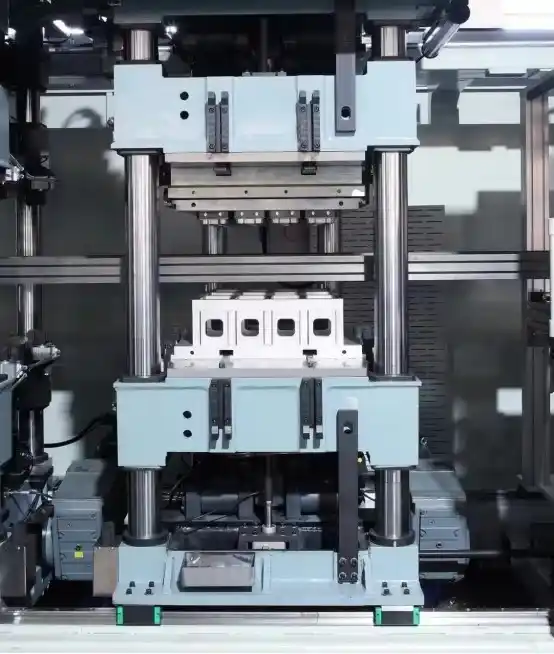

Hole Punching (Optional Station)
Enables integrated production of fruit containers, lids, and custom ventilation or hole patterns in a single cycle, completely eliminating the need for secondary processing.
Cutting
This module efficiently trims the thermoformed products with heated tooling, ensuring precise, smooth edges while significantly improving production efficiency.

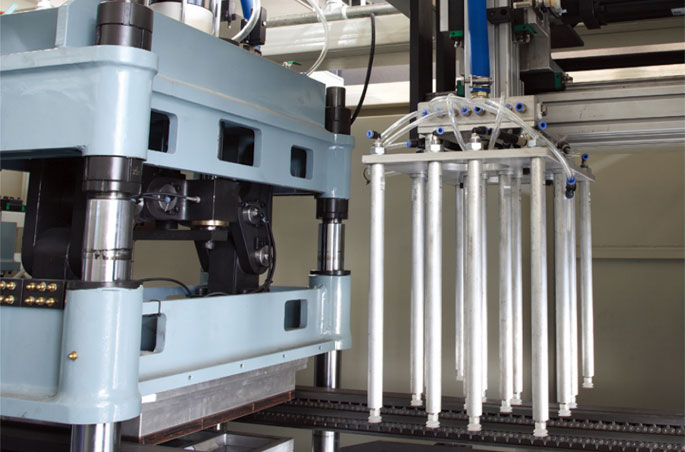

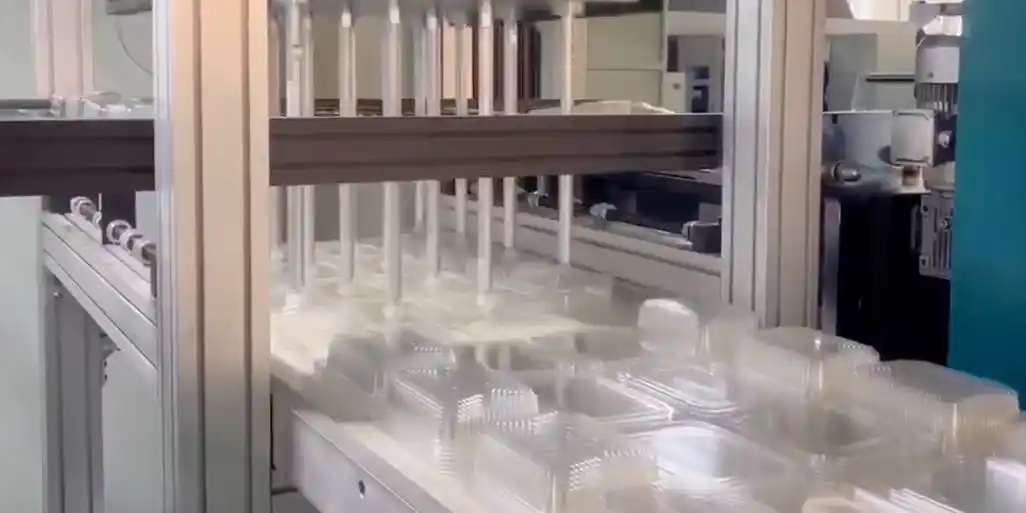

Stacking
The advanced stacking station features highly customizable design options to flexibly meet a wide variety of specific packaging and counting demands.

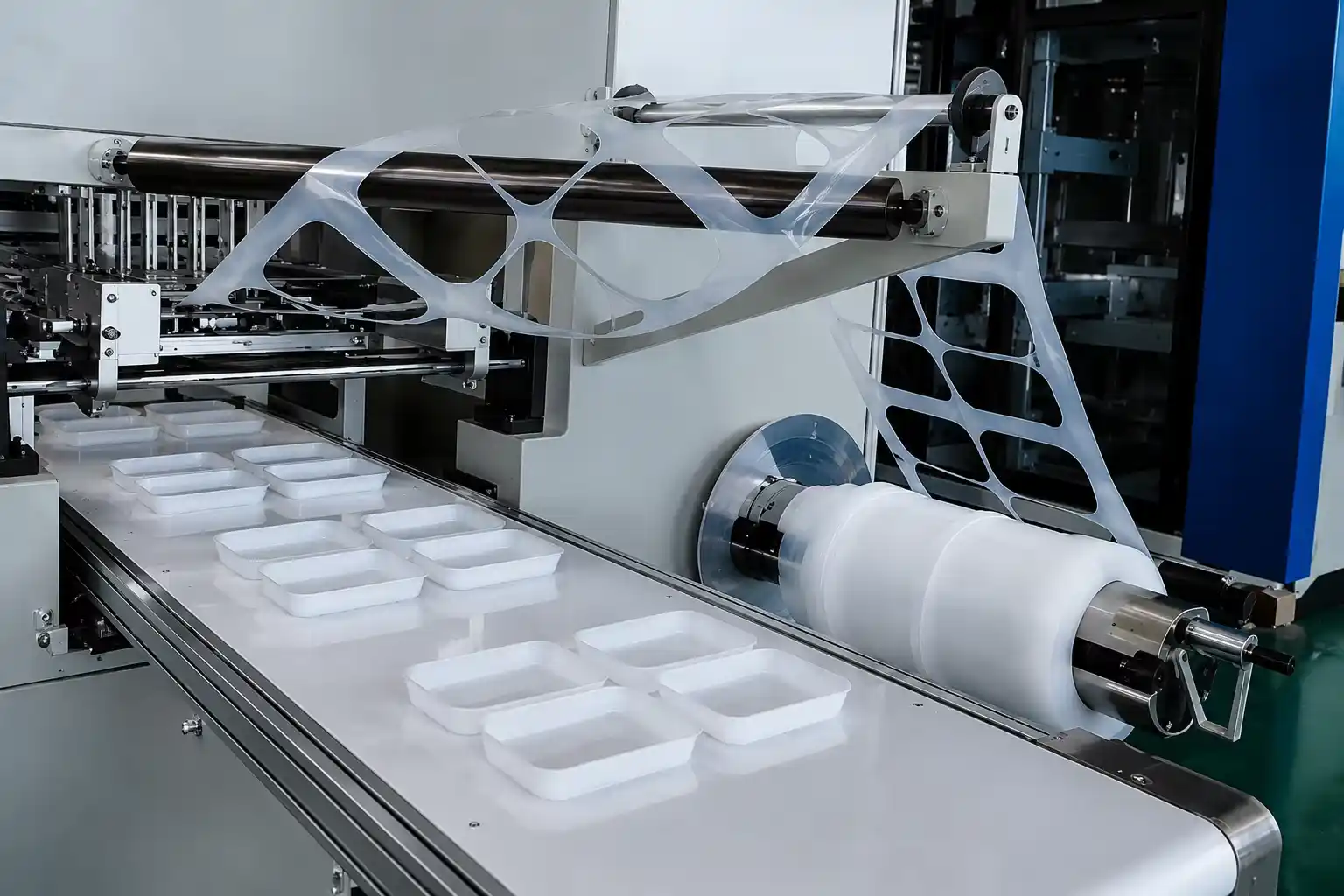

Waste Rewinder
Provides efficient skeleton sheet collection for convenient recycling, supporting an eco-friendly and sustainable thermoforming manufacturing process.
SAMPLE DISPLAY
Zhejiang Sayeah Machinery Co., Ltd

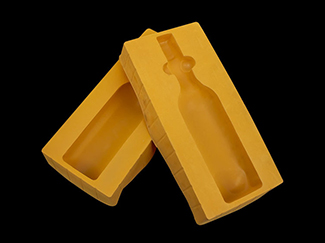

Thermoforming Mold

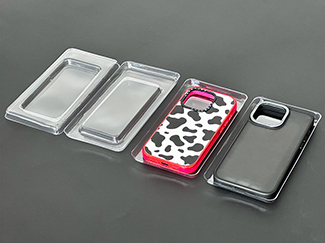

3C Electronics Packaging
Agricultural Horticulture

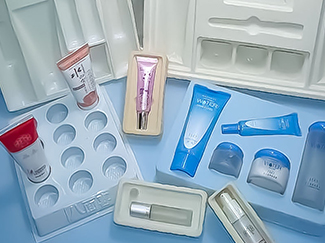

Medical & Cosmetic Packaging

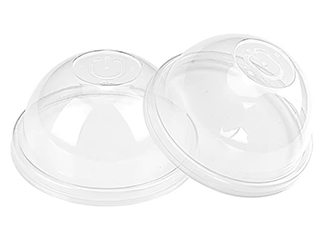

Cup Lid
Food Container Packaging

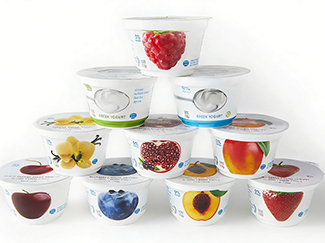

Desserts Packaging

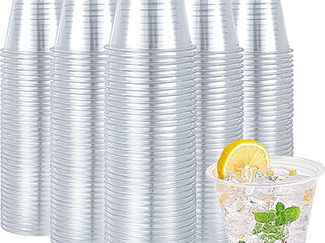

Drinking Packaging

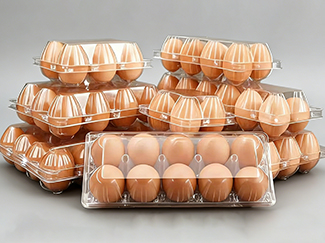

Egg Tray
Food Takeout Packaging

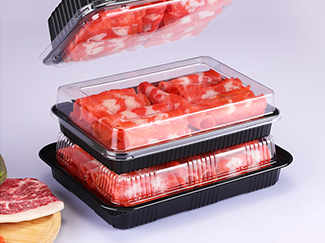

Meat Packaging
Toys & Stationery Packaging
Key Components from Trusted Brands
We source critical components only from world-leading suppliers to ensure quality and reliability.
