SY-SPC
Diagonal Multi-Layer Plastic Sheet CO-Extruder

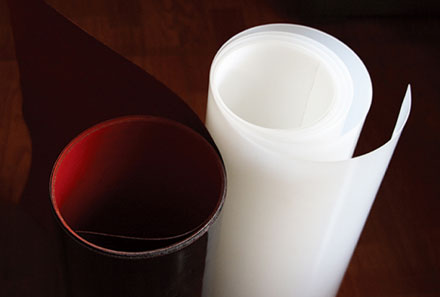

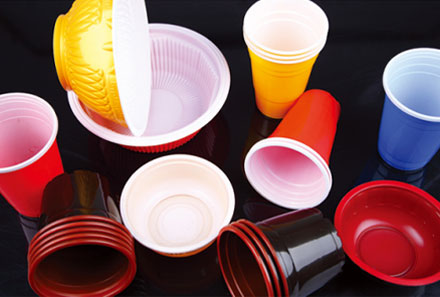

This machine mainly for producing PP/PS/PE double-layer plastic sheet, which is used for making disposable water drinking cups, ice-cream cups, yoghurt cups, lids, dishes, plates and etc.
Raw Material: PP,HIPS,PE
Sheet Thickness: 0.3-2mm
Layer: 2-3(AB/ABA), 4-5(ABCA/ABCBA)
Extrusion Capacity: 180-350kg/h
CE Certified
60+ Countries
1-Year Warranty
24h Response
Product Description
Major Construction Features
- The sheet extrusion unit is a combination of extruderthree roll calenders, haul-off unit, winder (including waste sheet winder) and electric control cabinet.
- The main parts, such as screw, barrel, screen exchanger, T-die adopt superior alloy steel (38 CrMoAlA) with high hardness strong corrosions resistance and long operating life after nitrogen treatment.
- The screw adopts big L/D ratio, equal plasticization and high plasticizing capability.
- Non-stop fast screen changer with double-sieve, controlled by hydraulic device, the operation is convenient and improve the production efficiency.
- The calendarhaul off unit and winder adopt integration design, fine appearance,convenient and improve the production eficiency.
- The machine frame adopt square steel, to make sure the machine works stably in high speed. The motor is connected with gear box directly, improve production efficiency and lower energy consumption.
- Note: Special specification and configuration of products can be designed according to customer' s demand.
Main Technical Parameters
| Model | SY-SPC-100-70 | SY-SPC-110-80 | SY-SPC-120-90 | SY-SPC-120-90-65 |
| Raw Material | PPHIPS,PE | PPHIPSPE | PPHIPSPE | PPHIPS,PE |
| Sheet Thickness | 0.3-2mm | 0.3-2mm | 0.3-2mm | 0.3-2mm |
| Layer | 2-3(AB/ABA) | 2-3(AB/ABA) | 2-3(AB/ABA) | 4-5(ABCA/ABCBA) |
| Extrusion Capacity | 180kg/h | 250kg/h | 350kg/h | 350kg/h |
| Main/Auxiliary Screw Dia. | Φ100/70mm | Φ110/80mm | Φ120/90mm | Φ120/90/65mm |
| L/D Ratio | 33:1 | 33:1 | 35:1 | 35:1 |
| Main/Auxiliary Motor | 45/30kw | 55/37kw | 110/45kw | 110/45/22kw |
| Overall Power | 130kw | 180kw | 220kw | 270kw |
| Weight | 10T | 13T | 18T | 21T |
Notes: lf any change of data, we will not notify further.
Diagonal Multi-Layer Plastic Sheet CO-Extruder Videos
Key Components from Trusted Brands
We source critical components only from world-leading suppliers to ensure quality and reliability.
