SY-CJ

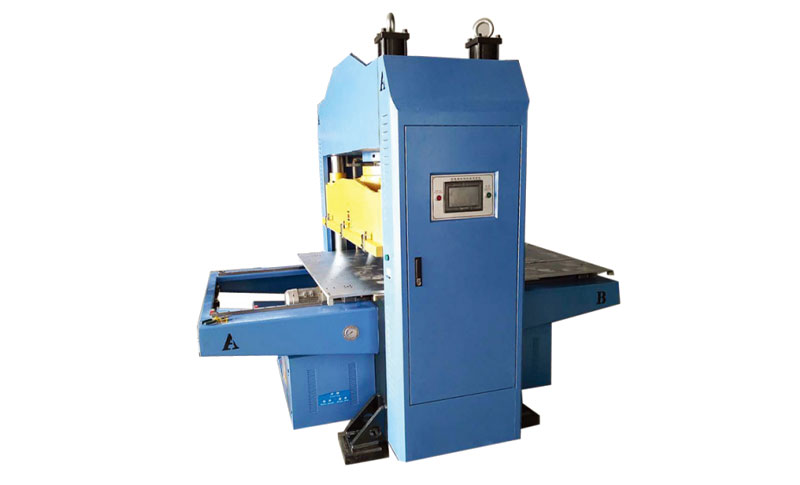

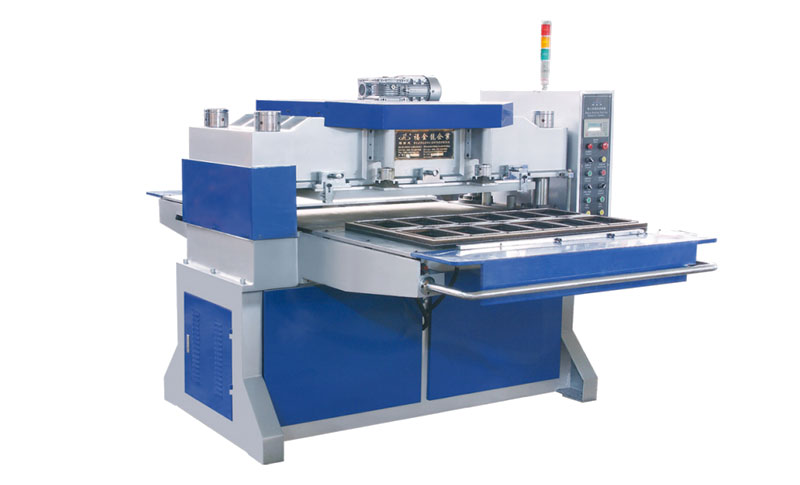

Hydraulic Punching Machine

Punching Area: 500 x1600 - 1050x320 mm
Punching Height: 50-200mm
Punching Speed: 0.8-12 s/mould

CE Certified

60+ Countries

1-Year Warranty

24h Response

Product Description

Model	SY-CJ25T	SY-CJ30T	SY-CJ1100x2	SY-CJ1200x2	SY-CJ1400x2	SY-1050/320
Punching Area	500 x1600mm	500x1600mm	1100 x1250mm	1200 x1250mm	1400x800mm	1050x320mm
Punching Height	50-150mm	50-150mm	150mm	150mm	200mm	150mm
Punching Speed	4-8 s/mould	4-8 s/mould	4-8 s/mould	4-8 s/mould	4-12 s/mould	0.8-3 s/mould
Punching Pressure	25T (2-Pillar)	30T(2-Pillar)	100T	120T	130T	7T
Total Power	3kw	3kw	11kw	11kw	11kw	10kw
Weight	1.2T	1.5T	4.8T	5T	5.6T	3.5T
Dimension	2070x990x1860mm	2070x990x1860mm	2260x1380x2500mm	3800x1500x2600mm	2760x1850x1670mm	2900x3700x3000mm
Power Supply	380V 50Hz Tri-phase, Four Wire

Notes: lf any change of data, we will not notify further

We source critical components only from world-leading suppliers to ensure quality and reliability.
